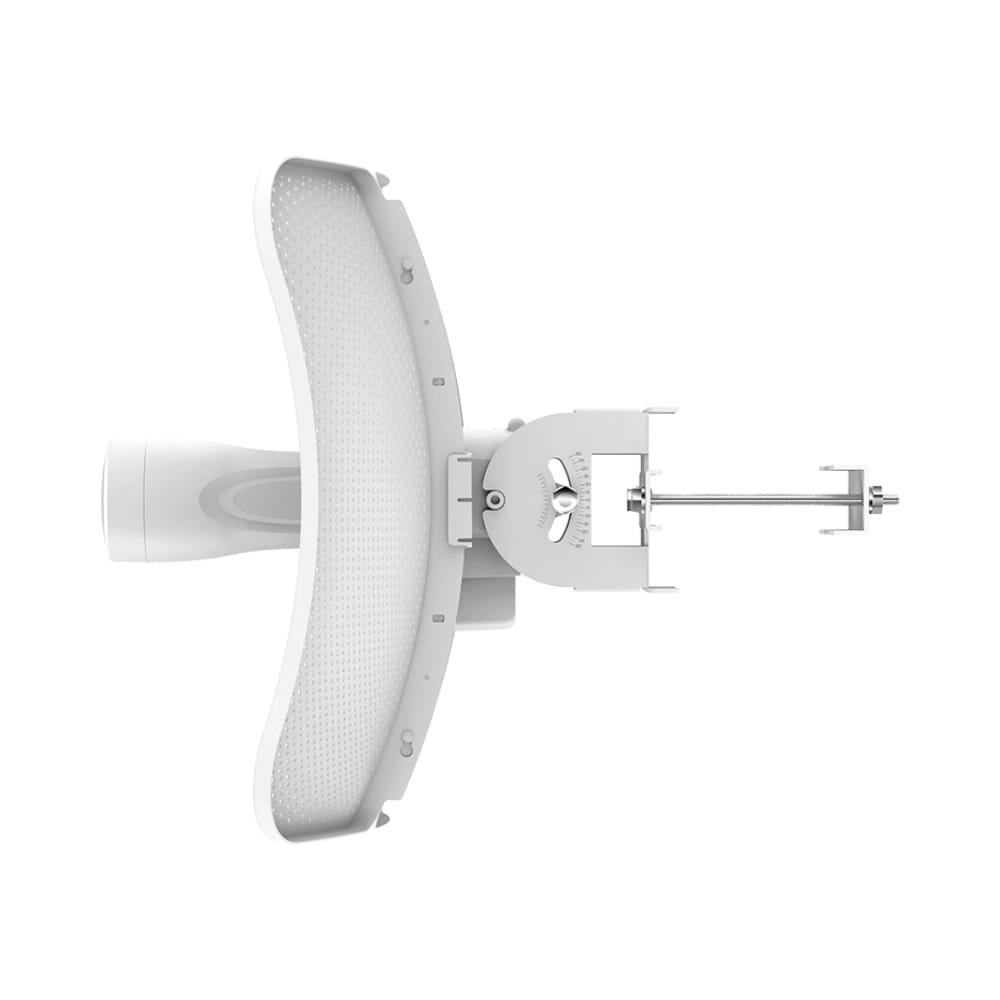

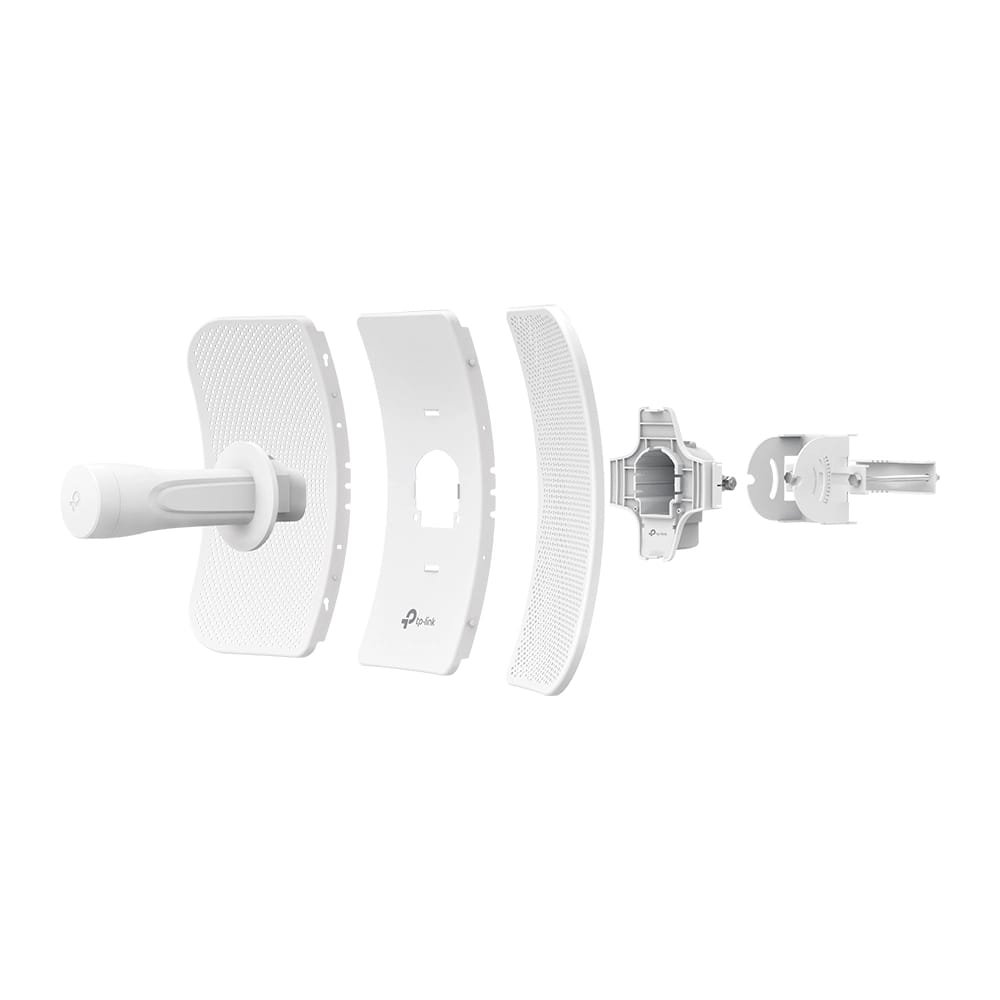

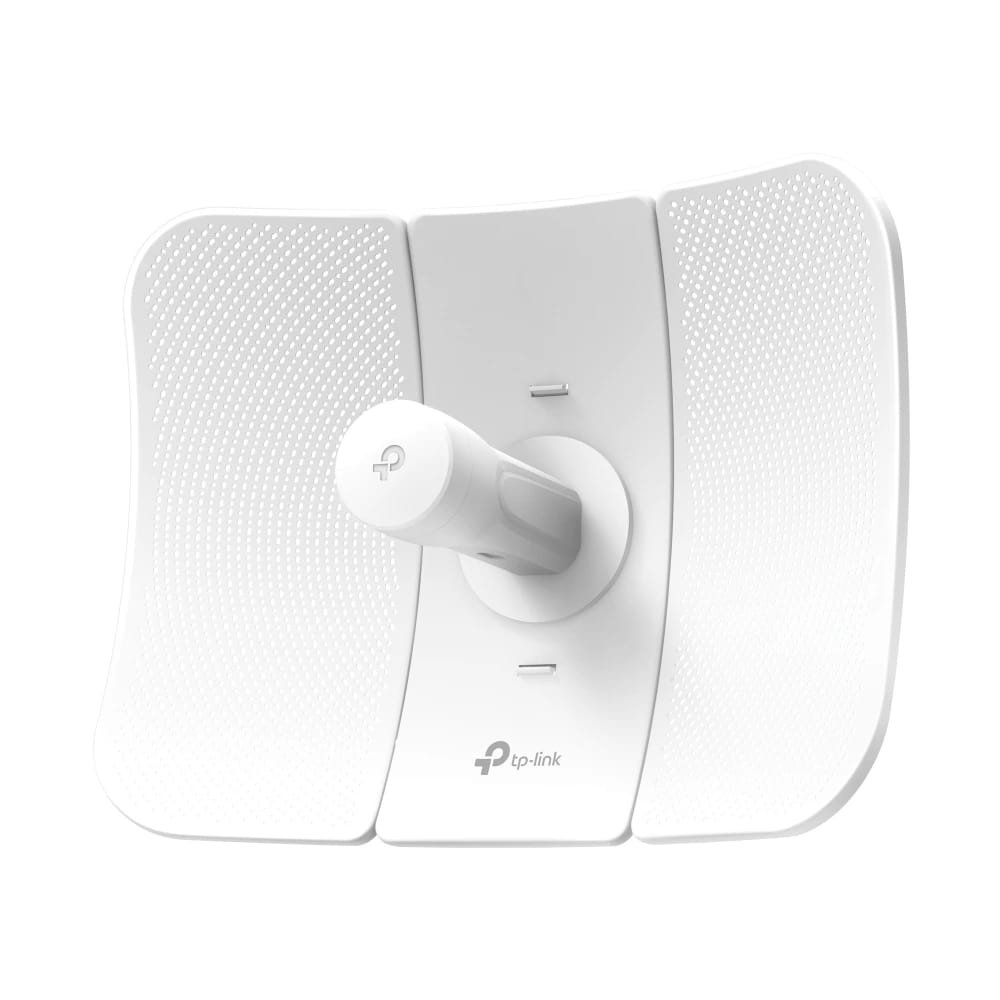

TP-LINK CPE610 5GHZ 300MBPS 23DBI OUTDOOR ACCESS POINT TO POINT (P2P)

Processor
Qualcomm 560MHz CPU, MIPS 74Kc
Memory
64MB DDR2 RAM, 8MB Flash
Interface
1 × 10/100Mbps Shielded Ethernet Port (LAN/PoE) 1 × Reset Button
Power Supply
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption
7.41 W
Dimensions (W x D x H)
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain
23dBi
Antenna Beamwidth
9° (Azimuth), 7° (Elevation)
Protection
15KV ESD Protection 6KV Lightning Protection
Enclosure
Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
Feature
Description
Wireless Standards
IEEE 802.11a/n
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300Mbps (40MHz, Dynamic) Up to 144.4Mbps (20MHz, Dynamic) Up to 72.2Mbps (10MHz, Dynamic) Up to 36.1Mbps (5MHz, Dynamic)
Frequency
5.15~5.85GHz (Available operating frequency may vary depending on the region)
Transmit Power
Max. 25dBm (Adjustable power by 1dBm)
Feature
Description
Network Configuration
WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations
Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Feature
Description
Management Options
Discovery and Remote Management via Pharos Control Application HTTP/HTTPS Web-based Management System Log SNMP Agent (v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools
Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications Hardware Watchdog
Feature
Description
Dimensions (W x D x H)
85.8 × 43.9 × 29.7 mm
Interfaces
1 AC Jack with Earth Ground 1 × 10/100Mbps Shielded Ethernet Port (Power + Data) 1 × 10/100Mbps Shielded Ethernet Port (Data)
Button
Remote Reset Button
Power Status LEDs
Green
Input
100-240VAC, 50/60Hz
Output
24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency
> 84.29%
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Feature
Description
Certification
CE, FCC, IC, RoHS, IP65
Package Contents
Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 10, 8, 7, MAC OS, NetWare, UNIX or Linux. Recommended Browsers: Google Chrome, Safari, Firefox. (IE browsers not recommended)
