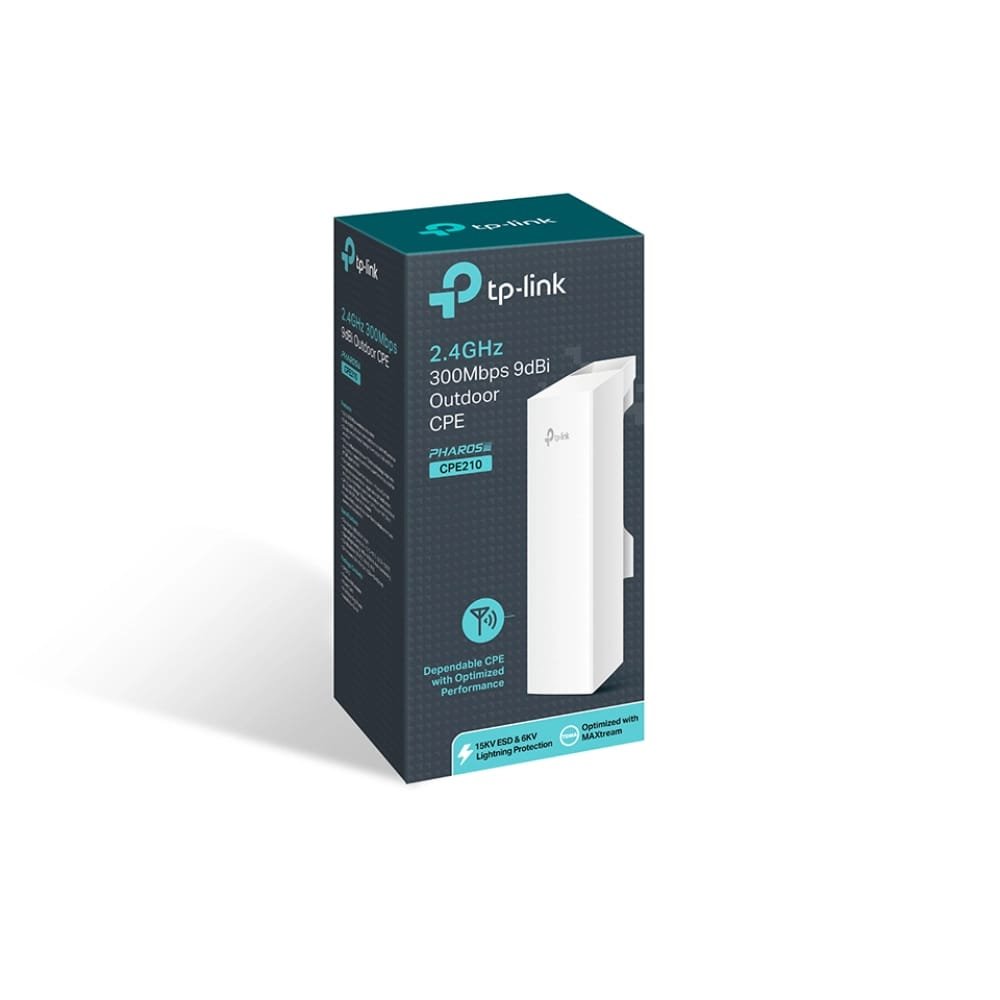

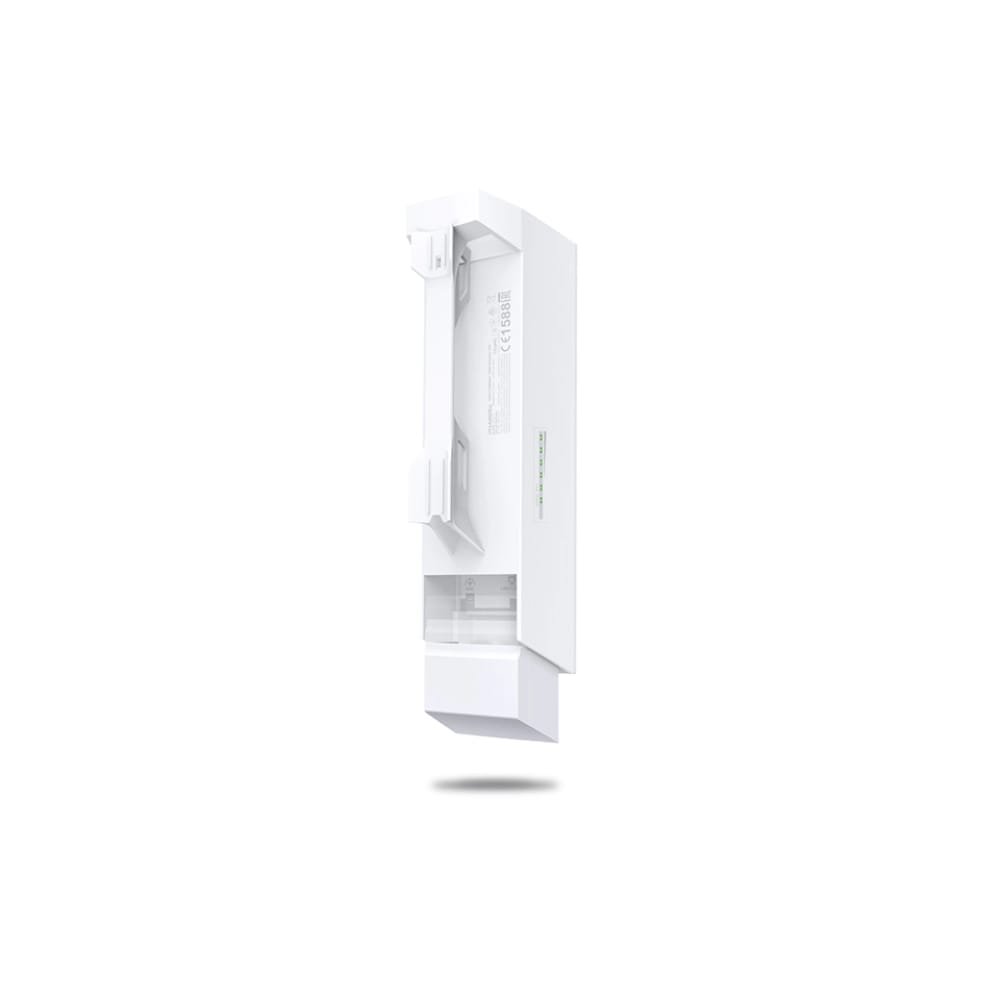

TP-LINK CPE210 2.4GHZ 300MBPS 9DBI OUTDOOR ACCESS POINT TO POINT (P2P)

Processor
Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory
64MB DDR2 RAM, 8MB Flash
Interface
1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption
10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher depending on the cable length.
Dimensions (W x D x H)
8.8 x 3.1 x 2.4 in.
Antenna Type
Built-in 9dBi 2×2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane)
Protection
15KV ESD Protection 6KV Lightning Protection
Enclosure
Outdoor ASA stabilized plastic material IPX5 waterproof Certification
Feature
Description
Wireless Standards
IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
* Up to 300Mbps (40MHz, Dynamic) • Up to 144.4Mbps (20MHz, Dynamic) • Up to 72.2Mbps (10MHz, Dynamic) • Up to 36.1Mbps (5MHz, Dynamic)
Frequency
2.4~2.483GHz
Transmission Power
27dBm/500mW (1dBm step adjustable)
Feature
Description
Wireless Configurations
* Pharos MAXtream TDMA Technology • 802.11b/g/n modes • Selectable Channel Width: 5/10/20/40MHz • Automatic Channel Selection • Transmission Power Control • Dynamic Frequency Selection (DFS) • WDS Enable/Disable • WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption • SSID Broadcast Enable/Disable • Multi-SSID with VLAN Tagging (AP mode only) • Distance/ACK Timeout Setting • Wireless MAC Address Filter
Wireless Advanced
* Beacon Interval/RTS Threshold/Fragmentation • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
* Discovery and Remote Management via Pharos Control application • HTTP/HTTPS Web-based management • System Log • SNMP Agent(v2c) • Ping Watch Dog • Dynamic DDNS • SSH Server
System Tools
* Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP • Spectrum Analyzer • Speed Test • Ping • Traceroute
System-level Optimizations
* Optimized IGMP Snooping/Proxy for multicast applications • Hardware watch dog
Feature
Description
Dimensions (W x D x H)
4.3 x 2.2 x 1.3 in
Interfaces
* 1 AC Jack with Earth Ground • 1 10/100Mbps Shielded Ethernet Port (Power + Data) • 1 10/100Mbps Shielded Ethernet Port (Data)
Button
Remote Reset Button
Power Status LEDs
Green
Input
100-240VAC, 50/60Hz
Output
24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency
