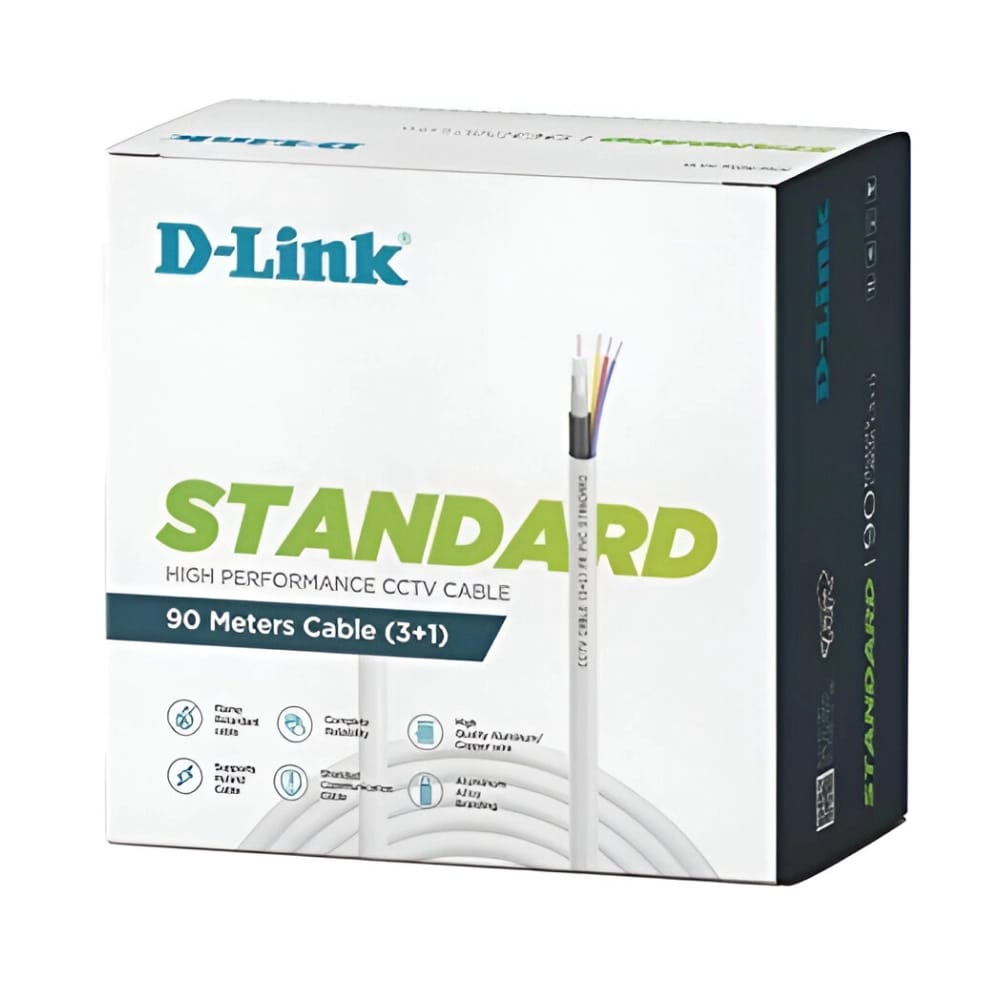

DLINK 3+1 CCTV CABLE COPPER STANDARD 90M

Color & Material of Outer Sheath FR PVC_White (IEC 60332-1)
Cable Diameter (Oval) 5.6 ± 0.3 mm
Jacket Thickness 0.60 ± 0.2 mm
Inner Conductor Copper
No. of Conductors 1.00
Conductor Diameter 0.50 ± 0.020 mm
Dielectric Solid PE
Color Natural
Diameter 1.35 ± 0.10 mm
Shield 6 mm Silver Aluminum Foil
Shield – Braiding Alloy braiding
No. of Braiding Wires 48
Coax Jacket PVC Type ST1
Video Core OD 2.70 ± 0.20 mm
Color Black
Core Color Red, Yellow, Grey
No. of Strands 7.00
Strand Diameter 0.14 ± 0.020 mm
Insulation PVC Type A
Diameter (Average) 1.25 ± 0.20 mm
